Motor Component of the Trigeminal Nerve

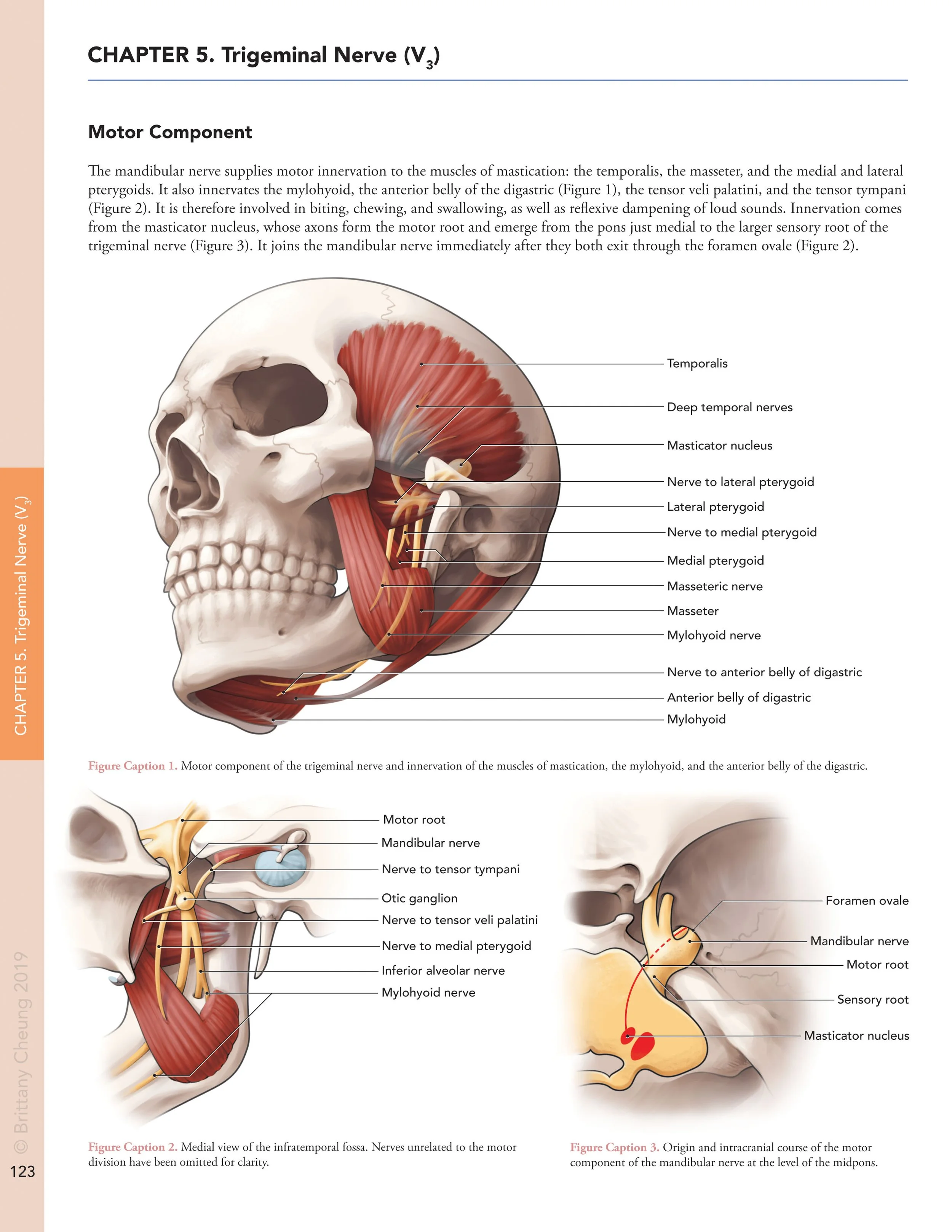

Textbook page with scientific illustrations describing the  trigeminal nerve (cranial nerve V). Its motor component is found in its third division, the mandibular nerve, and supplies motor innervation to the muscles of mastication.


Client: Professor David Mazierski
Year: 2020
Media: Adobe Illustrator, Adobe Photoshop


The trigeminal nerve is the largest and most complex cranial nerve. This textbook page is intended to teach neuroanatomy students about its motor component, which is found in its third division, the mandibular nerve.
